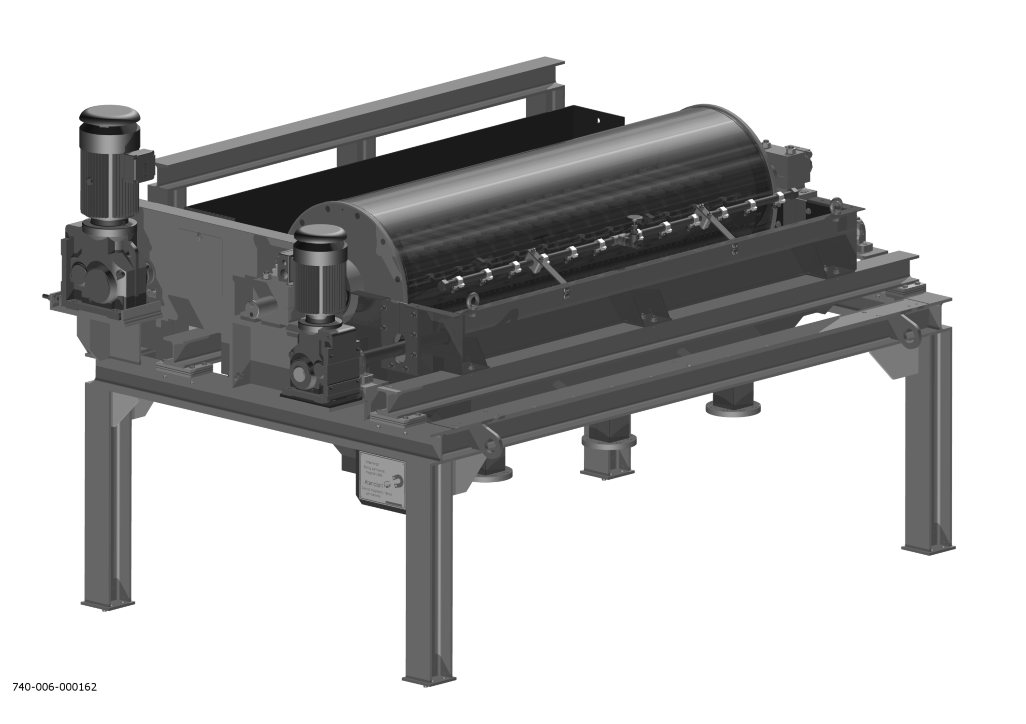

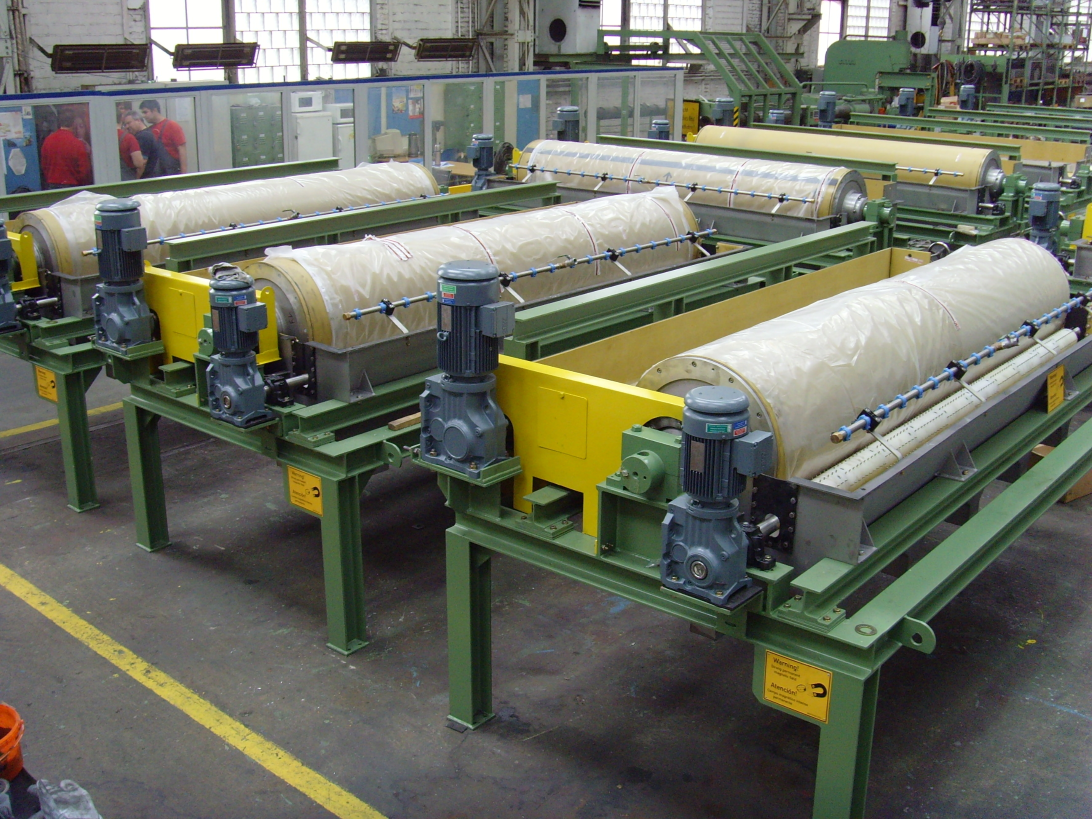

PERMOS® MIMS is a versatile magnetic drum separator for wet and dry separation of materials, operating at 5,000 to 6,000 Gauss. It handles coarse and fine materials with medium susceptibility, requiring no electric power due to its permanent magnet. It processes ferromagnetic and paramagnetic minerals, with applications including recovery of magnetite, martite, hematite, and goethite, as well as protecting high-intensity matrix separators from clogging. With a stainless steel drum shell, rubber lining for wear protection and a discharge roll for easy concentrate removal, it offers cost-effective, high-throughput solutions for various industrial processes.

• Material:Ferromagnetic and Paramagnetic  minerals
• Grain size: < 3 mm, based on liberation grade
• Solid content: ≈ 250 – 800 g/l, g. ≈ 32 – 50 wt %
• Dry solid throughput: 25 – 40 t/h per drum length
• Pulp throughput: ≈ 150 – 200  m³/h
