Pneuflot® Floatation
Discover PNEUFLOT®: a revolutionary flotation technology with a singular self-aerating unit, optimizing bubble-particle adhesion through kinetic energy. Efficient descent, froth formation, and pulp regulation redefine traditional flotation technology. Versatile applications include coal, metal ores, industrial minerals, salt, and recycling. Advanced features like self-priming aerators, wear-proof ceramics, and streamlined setup ensure high performance. Since 1987, 180+ installations showcase improved purity, yields, and cost-efficiency, making PNEUFLOT® a transformative choice across industries.
AVAILABLE MACHINE SIZES
DIAMETER | CELL VOLUME | THROUGHPUT | FOOTPRINT | |
(m) | (m³) | (m³ / h) | l × w (mm) | |
P-FV 02 K (Laboratory unit) | 0.2 | 0.0125 | 0.2 –0.4 | |
P-FV 08 NS (Pilot unit) | 0.8 | 0.5 | 8 –12 | 1000 x 1000 |
P-FV 15 NS | 1.5 | 2.5 | 25 – 45 | 2000 x 2000 |
P-FV 20 NS | 2.0 | 6 | 45 – 100 | 2500 x 2500 |
P-FV 25 NS | 2.5 | 10 | 90 –200 | 3000 x 3000 |
P-FV 30 NS | 3.0 | 20 | 180 – 350 | 3500 x 3500 |
P-FV 35 NS | 3.5 | 30 | 300 – 550 | 4000 x 4000 |
P-FV 40 NS | 4.0 | 45 | 450 –850 | 4500 x 4500 |
P-FV 45 NS | 4.5 | 65 | 700 –1200 | 5000 x 5000 |
P-FV 50 NS | 5.0 | 90 | 1000 –1600 | 6000 x 6000 |

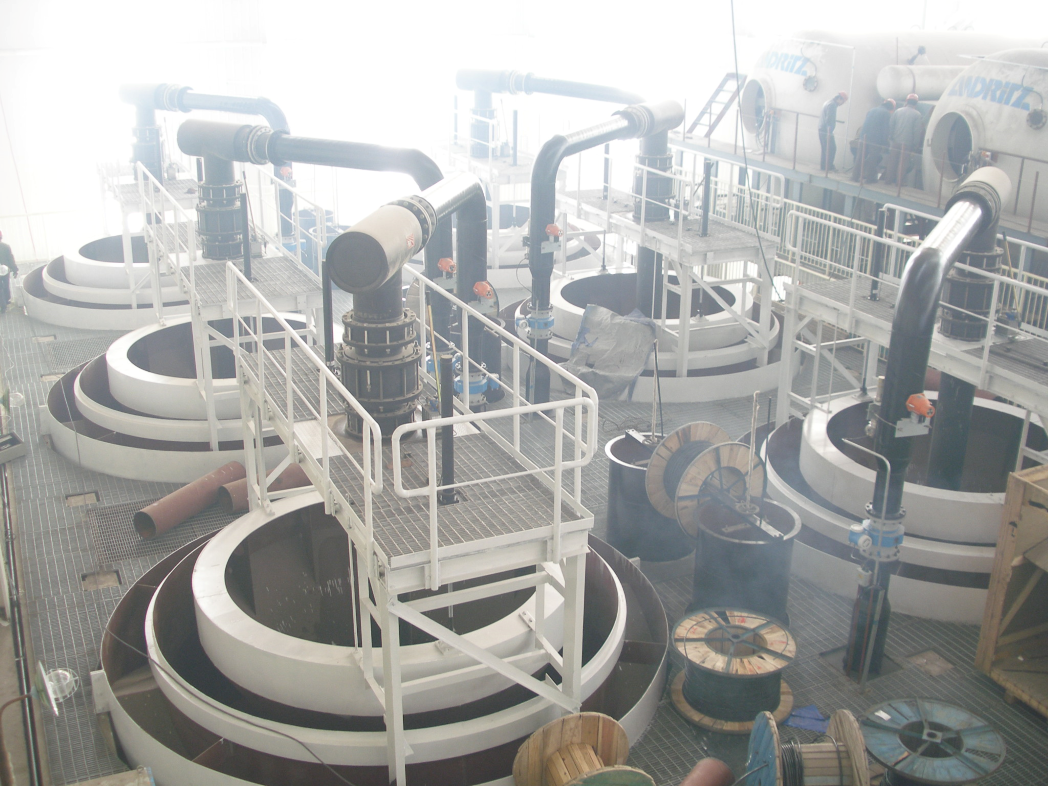

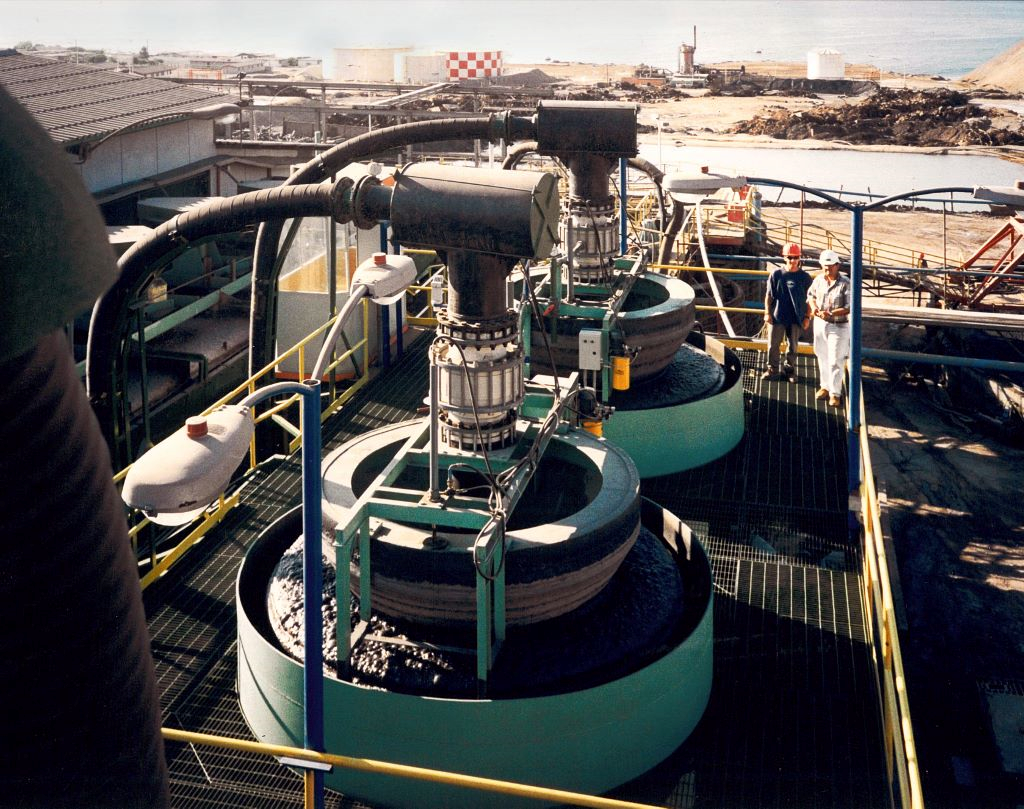

PHOTO GALLERY
